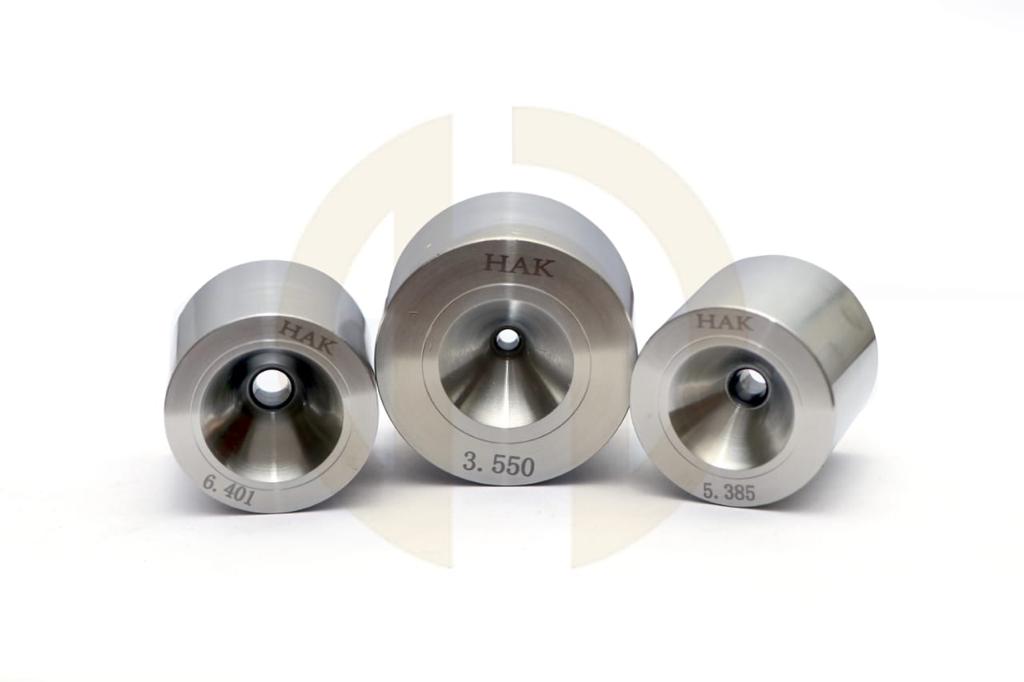

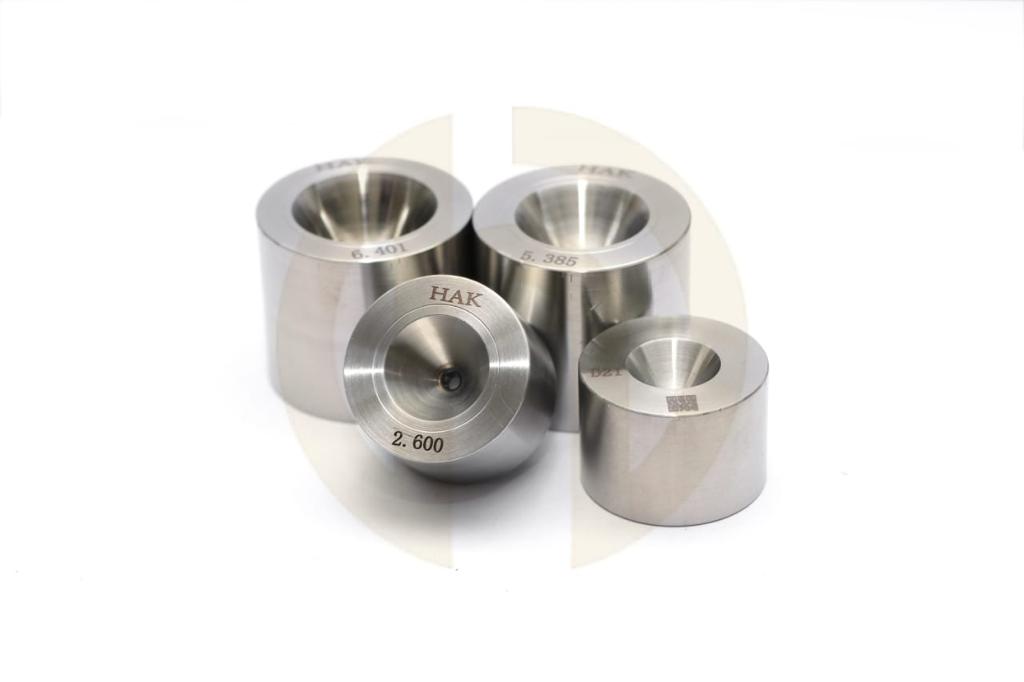

What's Tungsten Carbide Die?

Tungsten carbide is a composite material manufactured by a process called powder metallurgy tungsten carbide powder. Generally ranging in proportion between 70% - 97% of the total weight is mixed with a binder metal, usually, cobalt or nickel compacted in a die and sintered in a furnace. The resulting tungsten carbide material (TC BLANK, TC NIB, TC BUSH).

Application

  • Copper Wire
  • Aluminium Wire
  • Steel Wire
  • Carbon Steel Wire
  • Stainless Steel Wire
  • Tungsten Wire
  • Molybdenum Wire
  • Ferrous and Non-Ferrous Metal Wire

Product Specification

  • High compressive strength
  • High hardness at high temperature value
  • High abrasion resistance
  • High polishing
  • High corrosion resistance
  • Low friction
  • Low price
  • Large size of range available

How to order

  • Pcd diamond blank size ,shape, type ,grain wise
  • We design customized in some manner to meet specific application
  • Hole Geometry
  • Wire die casing

Product Overview

  • Wirediez technology design TC wire die for energy consumption & product economical solution for a variety of wire industry.
  • TC wire dies are used from many years in wire drawing applications for round & shape wire, rod, tube and pipe applications.
  • TC wirediez is also used for bunching, stranding, guiding, enamelling application.
  • TC wirediez are thermally stable in excess of 2870c.
  • TC wirediez widely used for ferrous metals, large size wire drawing and also it can be use of poor drawing conditions.
  • TC wirediez blanks, nib, plugs can be selected by grade (strength & hardness) as application required (pls check grade selection chart).
  • TC wirediez hole range 0.100mm to 50mm we make special size up to 75 mm.
